北爾觸摸屏 X2 pro 21 21'' HMI with iX software
點擊圖片查看原圖
品牌： 北爾
像素： 1920 × 1080
單價： 面議
所在地： 北京
有效期至： 長期有效
最后更新： 2023-12-04 09:27
瀏覽次數(shù)： 280
詢價
店鋪基本資料信息

 產(chǎn)品詳細說明

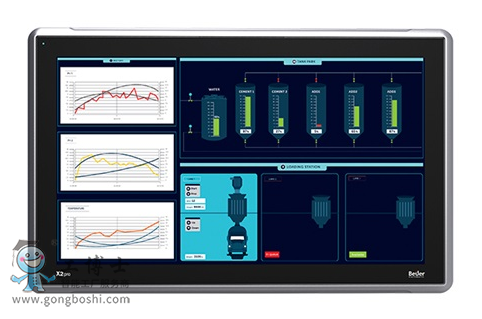

X2 pro 21

21'' HMI with iX software


Full 1920 × 1080 pixel HD resolution (16:9)
TFT-LCD touch screen
1.5 GB application memory
Ethernet 2x100 Mbit
0°C to +50°C operating temperature
CE, FCC, UL approvals

Facts

General description

Part number 640009505
Part status Active
Warranty 2 year

Certifications

General CE, UL 61010-2-201, FCC

Mechanical

Mechanical size 556 x 347 x 65mm
  Panel Mount, VESA 75 x 75
  1million finger touch operations
Touch type Resistive
Cut-out size 539 x 331mm
Weight 7.38 kg
Housing material Powder-coated aluminum, Gray

Power

Input voltage 24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies.
Power consumption (max) 45.6W
Input fuse Internal DC fuse



CPU i.MX6Quad, Quad ARMCortex-A9 1.0GHz 1MBL2cache
RAM 2 GB
FLASH 2GB SSD(eMMC), 1.5GB free for application

Display

Size diagonal 21.5" diagonal
Resolution 1920x1080 pixels
Backlight LED Backlight
Backlight life time 50000 hours
Backlight brightness 250 cd/m2
Backlight dimming Industrial Dimming
Display type TFT-LCD with LED backlight
