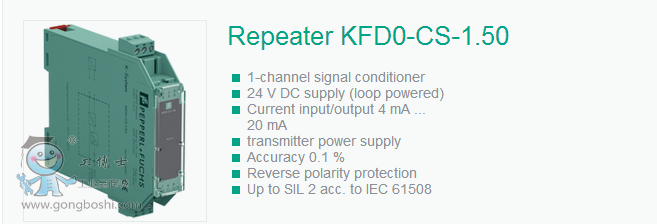

倍加福信號調節器KFD0-CS-1.50模擬量輸出P+F安全柵

點擊圖片查看原圖

品牌：	倍加福P+F
單價：	面議
所在地：	上海
有效期至：	長期有效
最后更新：	2024-10-16 16:25
瀏覽次數：	698

店鋪基本資料信息

倍加福專營
[VIP第3年] 指數:4
通過認證 [誠信檔案]
聯系人劉朝美(女士)
會員 [當前離線] [加為商友] [發送信件]
電話18321527578(微信同號）
手機13601696230(微信同號）
地址上海市寶山區富聯一路98弄6號

產品詳細說明

倍加福產品全新原裝正品可開增值稅票假一罰十歡迎來電咨詢

倍加福KFD0-CS-1.50產品相關參數：

產品闡述

1-channel

General specifications

Signal type Analog input

Supply

Rated voltage loop powered

Power dissipation 0.2 W

Control circuit

Connection terminals 12-, 11+

Voltage 10 ... 35 V DC

Current 4 ... 20 mA

Power dissipation < 150 mW per channel at 25 mA and U < 26.1 V

< 400 mW per channel at 25 mA und U > 26.1 V

Field circuit

Connection terminals 1+, 2-

Voltage ≥ 0.9 x Uin - (0.23 x current in mA) - 0.7 for 10 V < Uin < 26.1 V

≥ 23 V - (0.23 x current in mA) for Uin > 26.1 V

Short-circuit current max. 100 mA

Transfer current max. 25 mA

Transfer characteristics

Rise time ≤ 5 ms at 4 ... 20 mA and Uin = input voltage < 26 V

Directive conformity

Electromagnetic compatibility

Directive 2004/108/EC EN 61326-1:2006

Conformity

Insulation coordination EN 50178:1997

Electromagnetic compatibility NE 21:2006

Degree of protection IEC 60529:2001

Ambient conditions

Ambient temperature -20 ... 60 °C (-4 ... 140 °F)

Mechanical specifications

Degree of protection IP20

Mass approx. 100 g

Dimensions 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) , housing type B1

Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
